Finite Volume Elements

The Finite Volume Element Indicator (FVE) was developed by Markos Katsanos and introduced in the April 2003 issue of Technical Analysis of Stocks & Commodities magazine. It was modified for volatility in the September 2003 issue of TASC.

FVE is a money flow indicator but with two important differences from existing money flow indicators:

  • It resolves contradictions between intraday money flow indicators (such as Chaikin’s money flow) and interday money flow indicators (like On Balance Volume) by taking into account both intra- and interday price action.
  • Unlike other money flow indicators which add or subtract all volume even if the security closed just 1 cent higher than the previous close, FVE uses a volatility threshold to take into account minimal price changes.

The FVE provides 3 types of signals:

  1. The strongest signal is divergence between price and the indicator. Divergence can provide leading signals of breakouts or warnings of impending corrections. The classic method for detecting divergence is for FVE to make lower highs while price makes higher highs (negative divergence). An alternative method is to draw the linear regression line on both charts, and compare the slopes. A logical buy signal would be for FVE, diverging from price, to rise sharply and make a series higher highs and/or higher lows.
  2. The most obvious and coincident signal is the slope of the FVE line. An upward slope indicates that the bulls are in control and the opposite for downward.
  3. This is a unique and very important property of this indicator. Values above zero are bullish and indicate accumulation while values below zero indicate distribution. FVE crossing the zero line indicates that the short to intermediate balance of power is changing from the bulls to the bears or vice versa. The best scenario is when a stock is in the process of building a base, and FVE diverges from price and rises to cross the zero line from below, at a sharp angle. Conversely the crossing of the zero line from above is a bearish signal to liquidate positions or initiate a short trade.

Presentation

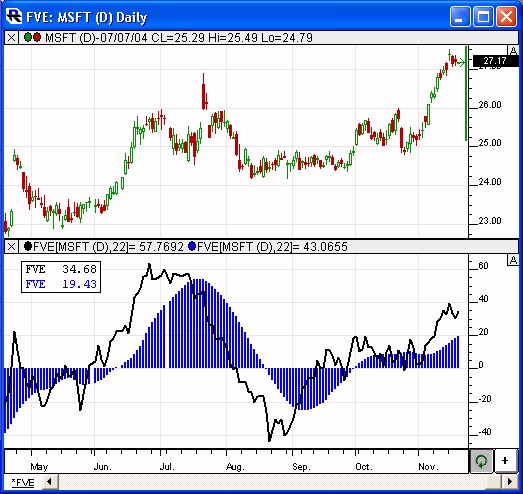

fveChart



Above is a Daily Chart of the Microsoft (MSFT). The FVE is added twice in the lower pane. The black line is the raw 22 period FVE, while the blue histogram is the 22 period FVE smoothed with a 20 period MA as seen in the preferences below.

Formula

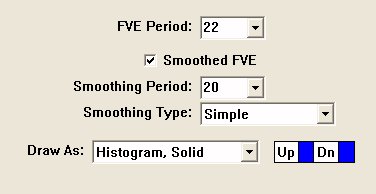

fvePrefs

  • FVE Period -Time segment chosen. This period is used in extensively in the calculation of FVE as seen in the formula section above.
  • Smoothed FVE -If checked, the result will be a smoothed FVE using the smoothing period and type specified below.

  • Smoothing Period - Period used to smooth the data, when "Smoothed FVE" is checked.
  • Smoothing Type - Type of smoothing used, when "Smoothed FVE" is checked.
  • Draw As -Options for drawing the FVE as a line (continuous, connected, two color, or stepped), or a histogram (hollow, solid, or custom histogram).
