Premium

VolumeScope® (RTX)

VolumeScope is the best in class footprint charting available, allowing the user to view per bar market order flow under a microscope, closely inspecting the volume at price data with great flexibility. The VolumeScope indicator has three primary components: Background, Text, and Candle. Each is optional and each has a variety of data and presention settings. Volume is broken down into Ask-Traded Volume (Buying) and Bid-Traded Volume (Selling) at each price. VolumeScope builds upon this information with profiling, coloring, and scaling options based upon relative volume, delta, imbalance, and much more.

TradeBubbles (RTX)

TradeBubbles is a component of the Investor/RT Volume Analysis package. The TradeBubbles extension draws 3-dimensional bubbles at each price within the bar. The size and coloring of the bubbles are variable, driven by volume-at price data.  The most recently touched prices are drawn in front. The extension has a horizontal positioning option and a horizontal offset and drift option. These settings control drawing so that the more recently touched prices are drawn further right.  Filtering options are available at both the trade and price level (e.g. consider only big trades > 10 lots or consider only prices with large volume > 1000).  With the flexible position options the TradeBubbles can be effectively combined with other indicators such as VolumeScope or can be positioned between candles with the Centered (Right) or Centered (Left) alignment options.

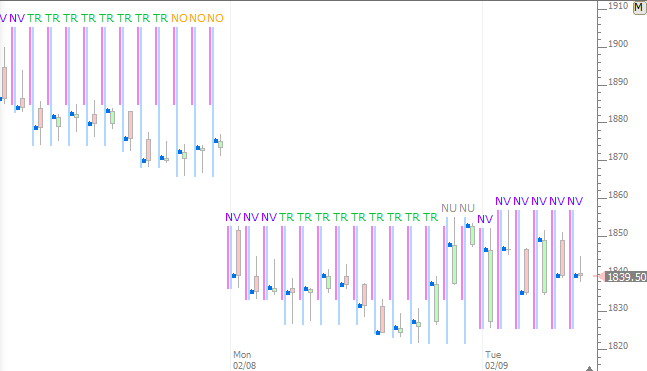

DayTypes (RTX)

The DayTypes RTX Extension determines the developing day type throughout the session and labels each bar with the day type in effect as of that bar.  The determination of day type is rooted in Market Profile methodology and is based on the relationship of the range of the initial balance (1st 60 minutes of trading) relative to the range of the full session and the relative location of the closing price.

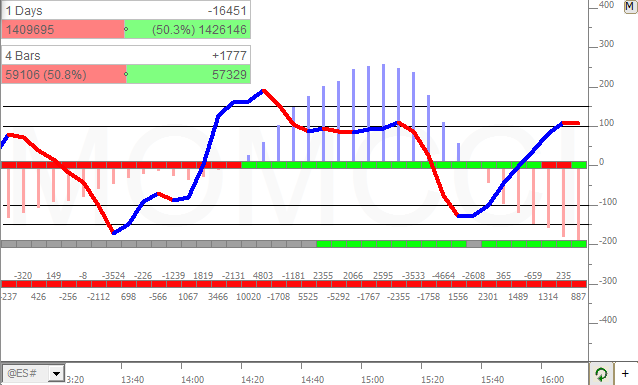

BuySellMeter (RTX)

The BuySellMeter extension displays the buying volume versus the selling volume for a user-specified period of time expressed as a number of days or number of bars.  Buying volume is defined as volume that traded at the ask/offer price; selling volume is defined as volume traded at the bid price.  BuySellMeter provides a nice visual of these two volume metrics in a compact box that may be positioned anywhere in the chart.  The horizontal and vertical position of the box (in pixels from top left) may be entered in the indicator preferences, or you can drag and drop the box using the mouse. The position can be fine tuned by clicking inside the box to select it and then using the keyboard arrow keys.

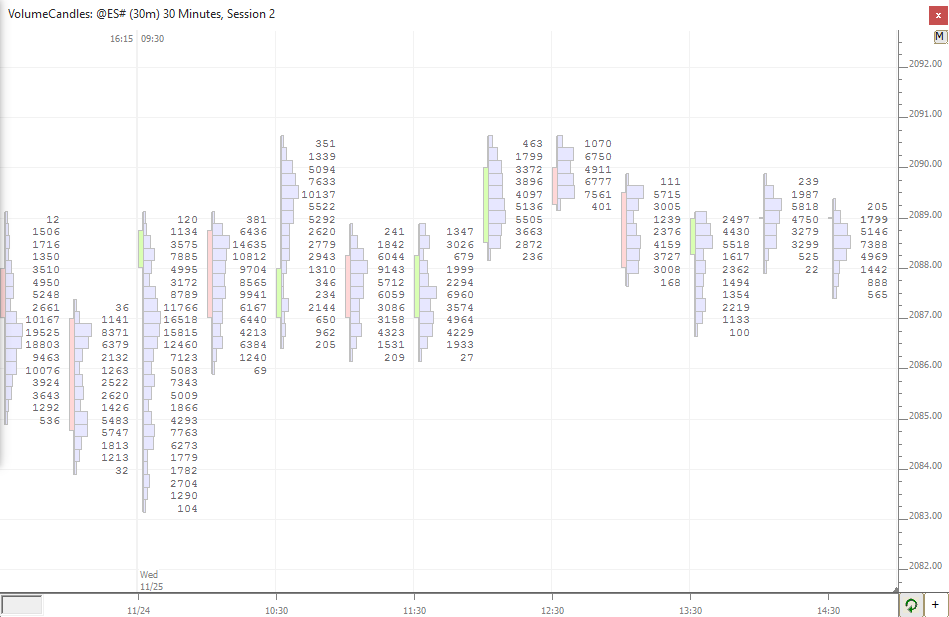

Volume Candles (RTX)

Volume Candles draws a candle, volume profile, and volume as text, for each bar, making efficient use of the horizontal space available for each bar.  It is recommended to set the drawing style of the instrument to "Invisible" and then add the VolumeCandles to the instrument pane to replace the bars.  Each of the 3 elements is optional, giving users the ability to plot candles with volume profiles, volumes with volume as text, etc.  User must ensure there is enough room vertically and horizontally to properly display elements.  To create more horizontal space, use the mouse scrollbar (or up/down arrow keys on keyboard).  To create more vertical space, use the mouse scrollbar while holding down the shift key.

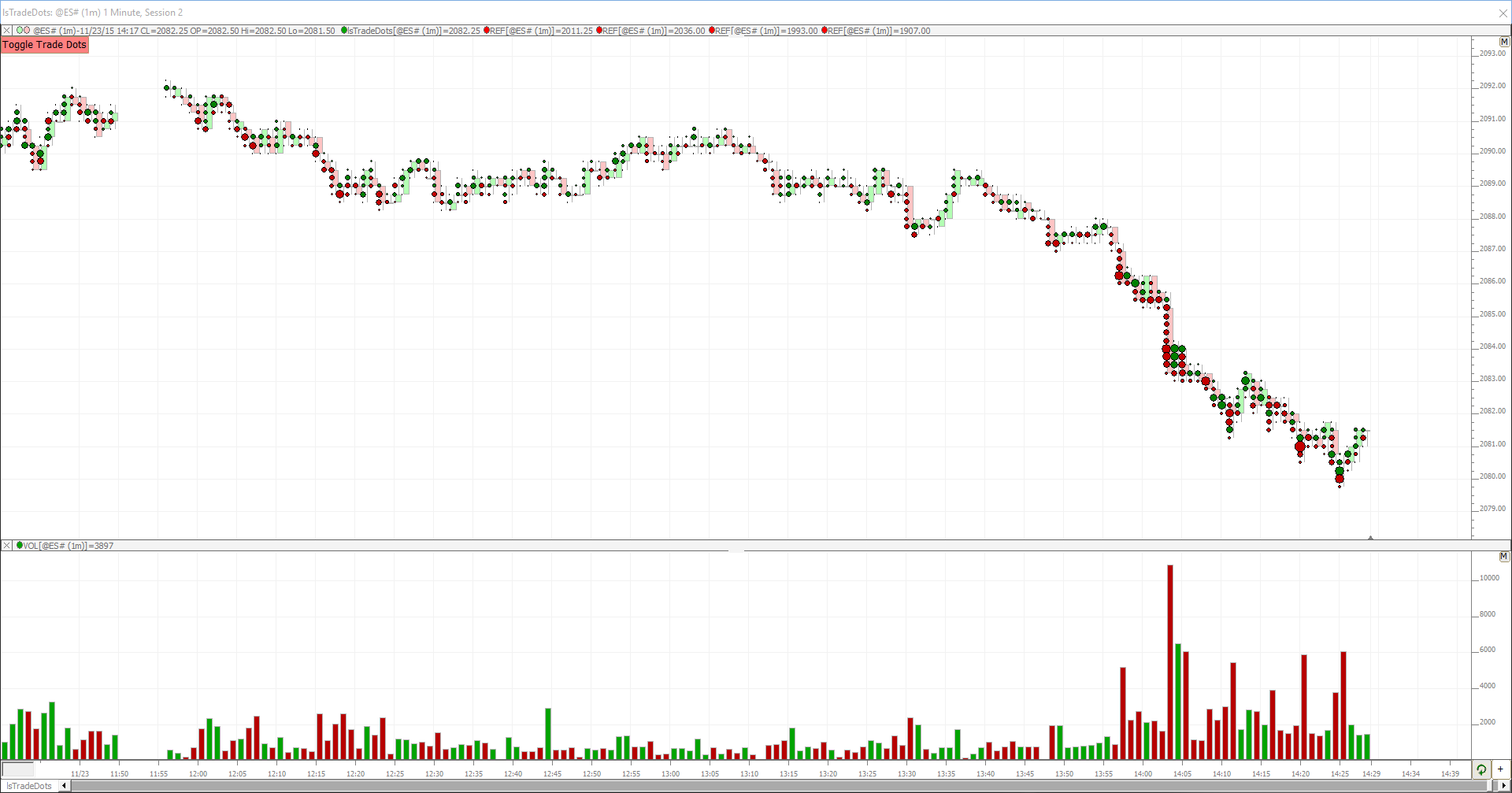

TradeDots (RTX)

The Trade Dots extension draws dots at each price within each bar. The dots are sized in proportion to the volume traded at that price within the bar. The dots are drawn in two user-specified colors representing positive or negative delta at that price. Many options exist which control the size, scaling, shape, and coloring of each dot. A single dot mode draws one dot or shape on each bar at the VWAP or VPOC of that bar.

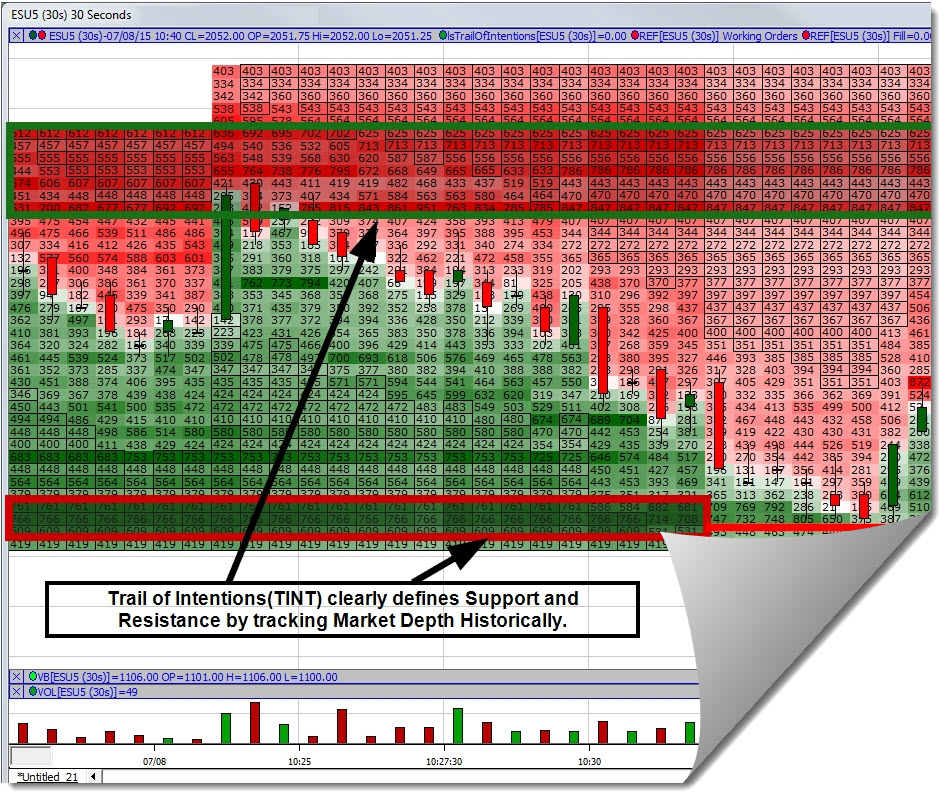

Trail of Intentions (RTX)

Trail of Intentions (TINT) is an RTX Extension designed to display historical snapshots of the depth of market (order book). The market depth provides numeric insight into the intention of traders to buy and sell at various prices. TINT provides a wealth of options to visually identify relative size and changes in sizes among prices within same snapshot or from snapshot to snapshot over time.

Volume Breakdown (VB)

The Volume Breakdown is a powerful and flexible indicator used to gauge buying and selling pressure. It looks inside each bar, breaking down and classifying each tick and then accumulating the results (accumulation is optional), and further giving the user a variety of statistical measures (including all built-in technical indicators) to apply the these results. The most common use of the VB indicator is to calculate the delta (difference between the buy (ask-traded) and sell (bid-traded) volume) of each bar. Positive deltas signify more buying pressure, while negative deltas signify more selling pressure. The magnitude of the delta determines the strength of that pressure. Expect to see positive deltas during uptrends and negative deltas during downtrends, but look for delta turning negative at highs, or turning positive at lows...a sign of possible market turns and good entry/exit points.
